Solar Energy Storage: How Batteries Make Solar Power Work 24/7

Solar power is the fastest-growing source of electricity on the planet. But it has a fundamental limitation: the sun does not shine at night, and peak generation at midday rarely lines up with peak demand in the evening. That mismatch is not a minor inconvenience — it is the central obstacle to making solar a reliable, round-the-clock energy source.
Solar energy storage — pairing photovoltaic (PV) panels with battery systems — solves this by capturing surplus daytime energy and releasing it when it is actually needed. This article explains how these systems work, where they deliver the most value, and what to look for when selecting the right battery for a solar installation.

How Does a Solar + Storage System Work?

A solar battery storage system has five core components: PV panels that generate direct current (DC) electricity, an inverter that converts DC to alternating current (AC) for household or grid use, a battery pack that stores surplus energy, a Battery Management System (BMS) that protects the cells, and a connection point to either the grid or local loads.
The energy flow follows a simple daily pattern. During daylight hours, the PV array generates more electricity than the building consumes. The excess charges the battery. After sunset — or during cloudy periods — the stored energy discharges to cover demand, reducing or eliminating the need to draw from the grid.

DC-Coupled vs. AC-Coupled: Two Ways to Connect

How the battery connects to the PV array defines the system architecture. There are two primary approaches.
In a DC-coupled system, solar panels feed DC electricity directly into the battery through a charge controller. The energy is only converted to AC once — when it leaves the battery to power loads or export to the grid. This single-conversion path delivers higher round-trip efficiency, typically 2%–6% more usable energy compared to AC-coupled setups. ¹ DC coupling is the preferred choice for new-build installations where panels and storage are designed together from the start.
In an AC-coupled system, the solar panels connect to a standard PV inverter that converts DC to AC first. To charge the battery, that AC is then converted back to DC by a second inverter. When the battery discharges, the energy is converted to AC a third time. Three conversion steps mean more efficiency losses, but AC coupling has a major practical advantage: it is far easier to retrofit onto an existing solar array without replacing the original inverter. ²
Neither architecture is universally superior. The right choice depends on whether the installation is new or a retrofit, the project's efficiency targets, and budget constraints.

Where Does Solar Energy Storage Deliver the Most Value?

The economic case for adding batteries to solar varies by use case. Here are the five scenarios where solar battery storage has the clearest payback.

Self-Consumption

The most straightforward application. A home or business generates solar electricity during the day, stores the surplus, and uses it at night. This reduces grid imports and makes the solar investment work harder, particularly in markets where feed-in tariffs have declined.

Time-of-Use (TOU) Arbitrage

In regions with TOU electricity pricing, batteries charge during low-rate solar hours and discharge during high-rate evening peaks. The wider the spread between off-peak and peak rates, the faster the system pays for itself.

Backup Power and Resilience

Extreme weather events and aging grid infrastructure have pushed resilience to the top of many buyers' priorities. A solar-plus-storage system keeps critical loads — refrigeration, lighting, communications, medical devices — running during outages, independent of the grid.

Net Billing Response

Policy changes are accelerating battery adoption. In California, the transition from net metering (NEM 2.0) to net billing (NEM 3.0) sharply reduced compensation for exported solar electricity. The result: residential battery attachment rates in California reached 69% by early 2026. ³ Homeowners who once exported cheap solar to the grid now store it instead.

Off-Grid Independence

For remote locations — islands, rural communities, mining operations, construction sites — solar-plus-storage provides reliable electricity where grid connection is impractical or prohibitively expensive. These systems typically use larger battery banks and are designed for full energy autonomy.

What Specs Matter When Choosing a Solar Battery?

Not all batteries perform equally in solar applications. Five specifications separate a good match from a costly mismatch.
Usable capacity (kWh) determines how much energy the battery can deliver per cycle. A typical residential system ranges from 10–15 kWh; commercial and industrial (C&I) systems start at 100 kWh and scale into the megawatt-hour range.
Power output (kW) defines how many loads the battery can support simultaneously. A 5 kW battery can run lights, a refrigerator, and a router — but not an air conditioner and an oven at the same time.
Round-trip efficiency (RTE) measures the percentage of energy retained through a full charge-discharge cycle. Lithium iron phosphate (LFP) batteries typically deliver 95%–96% RTE, meaning only 4%–5% of stored energy is lost as heat. ⁴
Cycle life determines long-term economics. An LFP cell rated at 6,000 cycles at 80% depth of discharge (DoD) will deliver roughly 16 years of daily cycling before reaching 80% retained capacity. For a deeper explanation of what affects cycle life and how to extend it, see our companion article: Understanding Battery Cycle Life: What Affects It and How to Maximize It.
Temperature performance is often overlooked but critical. Standard lithium-ion cells lose significant capacity below 0°C and degrade faster above 45°C. Great Power's POLAR series addresses this directly — these LFP cells charge at temperatures as low as −30°C with over 95% efficiency, using Low-Temperature Super Conductivity (LTSC) technology. For residential solar installations in Northern Europe, Canada, or northern China, this eliminates the seasonal performance loss that limits conventional batteries.
For residential solar storage, Great Power's HOME-II series large cylindrical batteries — the result of five years of focused R&D — are designed specifically for daily solar cycling in compact residential form factors.

Solar + Storage at Utility and C&I Scale

The solar-plus-storage model scales well beyond rooftops. At the utility and C&I level, the numbers are transformative.

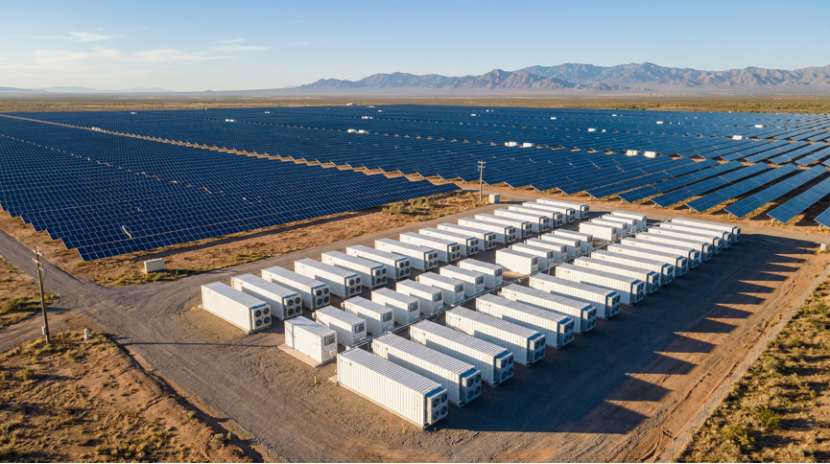

The U.S. Energy Information Administration (EIA) projects 86 GW of new utility-scale generating capacity in 2026 — the largest single-year addition in over two decades. Solar and battery storage account for 79% of those additions. ³ In Texas alone, major projects like the 621 MW Lunis Creek battery energy storage system (BESS) and the 600 MW Clear Fork Creek Solar & BESS are scheduled for commercial operation this year.
The industry is also moving toward longer storage durations. Four-hour systems are now standard; six- to eight-hour configurations are becoming common as project developers seek to replace retiring natural gas peaker plants. Revenue stacking — combining self-consumption savings, demand charge reduction, and grid ancillary services like frequency regulation — further improves project economics.
At this scale, system-level efficiency and safety become paramount. Great Power's Ultra Max 5000 liquid-cooled energy storage container delivers 96% round-trip efficiency in a 20-foot integrated design, with UL9540A and NFPA 855 safety certifications. For sites where standard containers do not fit, the Magna-UTL modular cabinet — with sub-4-ton units and liquid cooling that maintains cell temperature variation within 2°C — provides an alternative that extends cycle life by up to 30% compared to air-cooled systems.

The Bottom Line

Solar energy storage is no longer optional — it is the default architecture for new solar installations in 2026. Whether at the residential scale or the utility scale, batteries turn intermittent solar generation into dispatchable, reliable power.
The right system starts with understanding your energy profile: when you generate, when you consume, and what role backup power plays. From there, match the battery chemistry, capacity, coupling architecture, and thermal management to your specific conditions. Solar panels capture energy. Batteries make it useful.

References

1. FFD Power. "DC-Coupled vs AC-Coupled Solar+Storage: Energy Flow and Efficiency Core Comparison." FFD Power, 2025, ffdpower.com/dc-coupled-vs-ac-coupled-solar-storage-energy-flow-and-efficiency-core-comparison.
2. EnergySage. "AC vs. DC Solar Battery Coupling: What You Need to Know." EnergySage, 25 Sept. 2025, www.energysage.com/energy-storage/ac-vs-dc-solar-battery-coupling-what-you-need-to-know.
3. Kennedy, Ryan. "Solar and Storage to Lead Record-Breaking 86 GW of New U.S. Capacity in 2026." PV Magazine USA, 25 Feb. 2026, pv-magazine-usa.com/2026/02/25/solar-and-storage-to-lead-record-breaking-86-gw.
"Energy Storage Market Size, Growth, Share & Industry Trends — 2025–2031." Mordor Intelligence, Jan. 2026, www.mordorintelligence.com/industry-reports/energy-storage-market
